NACA 0021 Beyond Stall: Hybrid RANS/LES

This case compares four hybrid RANS/LES models of SU2 on a NACA 0021 airfoil at 60 degrees angle of attack. At this angle the flow separates at the leading and trailing edges. A wide, unsteady wake forms behind the airfoil. URANS does not predict this flow well, so it is a standard test for DES-type models. It is case UFR 2-11 of the ERCOFTAC knowledge base and a test case of the European DESider project.

The four models are:

The shear-layer-adapted cell size of Shur et al. (2015) is smaller than Δmax in the thin shear layers that leave the airfoil. The model then switches to LES faster after separation, and resolved eddies appear earlier. This is the main difference that the case shows. The models are explained on the Hybrid RANS/LES page.

Note: the SST variants and the current form of SA_EDDES come with PR #2150. They are in develop once that pull request is merged.

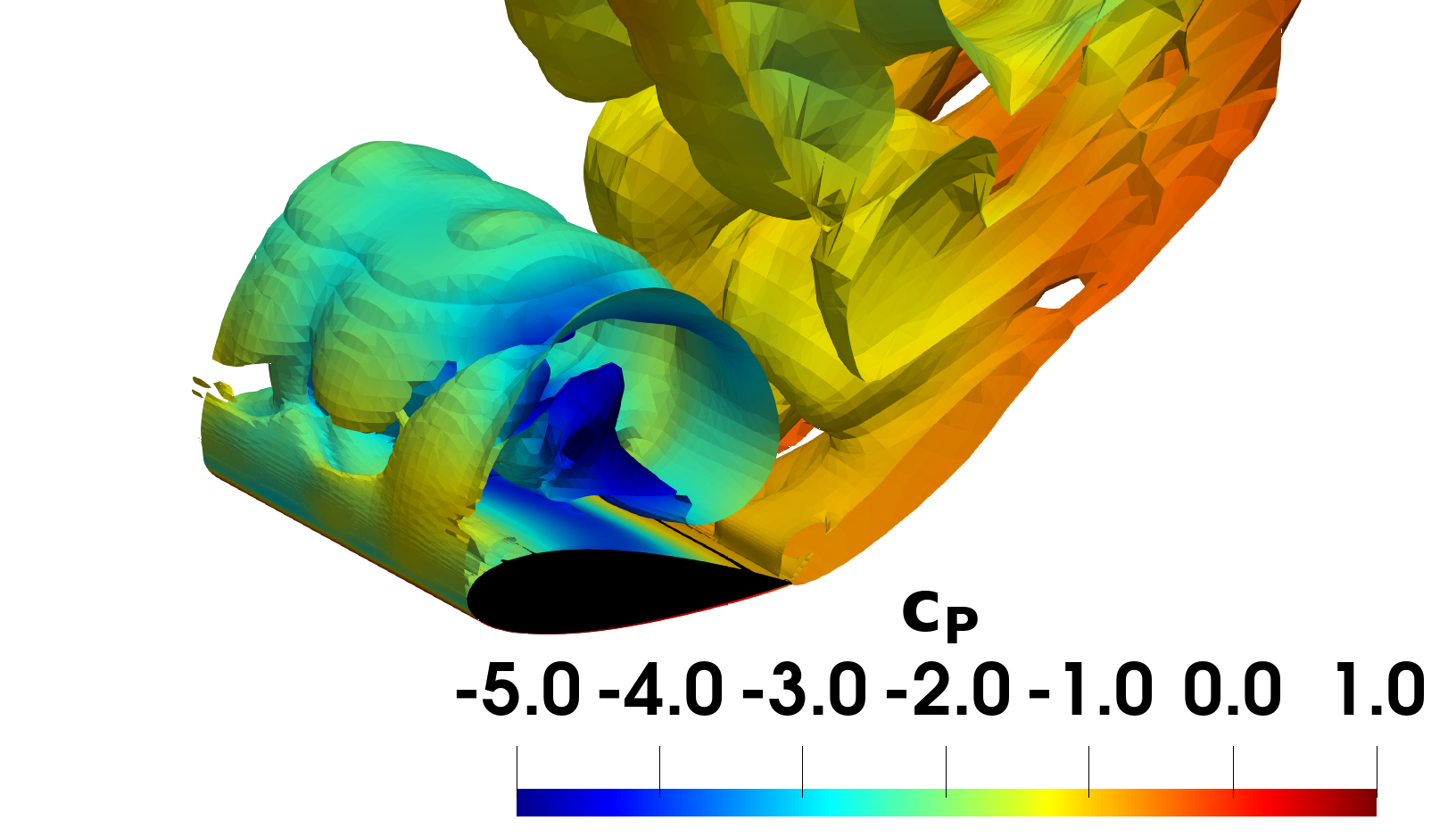

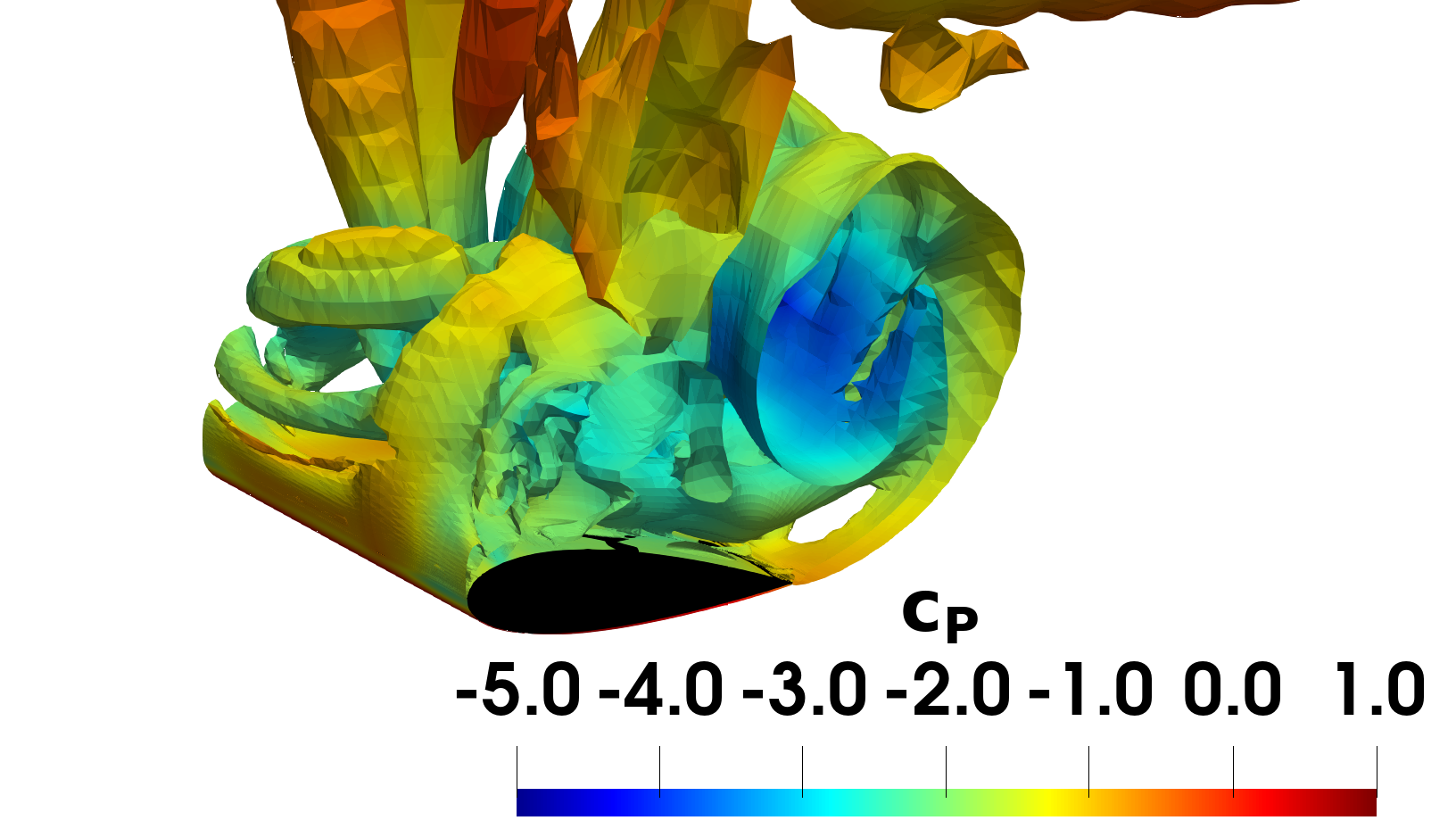

Figure 1 - Instantaneous vortical structures: iso-volume of the Q-criterion between 10⁻⁵ and 10⁻³, coloured by the pressure coefficient: SST-DDES (left) and SST-EDDES (right). With SST-DDES, the shear layer from the leading edge stays a smooth sheet before it rolls up. With SST-EDDES, it breaks up into small, three-dimensional eddies close to the airfoil.

Problem Setup

• Airfoil: NACA 0021, chord c = 1 m, angle of attack 60 degrees.
• Reynolds number based on the chord: 2.7 × 10⁵, as in the experiment of Swalwell et al.
• The experiment is at low Mach number, so the incompressible solver is used. Free-stream speed U = 4.1625 m/s, density 1.2 kg/m³, viscosity 1.85 × 10⁻⁵ Pa s.
• Inflow eddy viscosity equal to the laminar viscosity, as in Guseva et al. (2017).
• The span is periodic. All four runs use the same mesh and the same numerical settings.

Numerical settings:

• Time step 0.025 c/U with DUAL_TIME_STEPPING-2ND_ORDER and 50 inner iterations per time step. Guseva et al. use 0.03 c/U.
• Mean flow: JST central scheme. Turbulence: first-order SCALAR_UPWIND. Green-Gauss gradients.
• Each run starts from a steady RANS solution of the same turbulence model. SA-EDDES starts from the developed flow of an earlier SA-EDDES run.
• The first 100 c/U are left out of the statistics as start-up transient (20 c/U for SA-EDDES). All runs are then averaged over the same time, 520 c/U.

The configuration file is available here. Its header lists the lines to change for each model.

Mesh Description

The mesh is a structured O-grid made of hexahedra:

• 162 points around the airfoil and 83 points from the wall to the far field, which is about 22 chords away.
• 31 points over a span of 1 chord, so the spanwise spacing is 0.033 c.
• 416,826 points and 398,520 hexahedra in total.
• The first cell at the wall gives y+ below 1 on average (95% of the wall points are below 1.4).

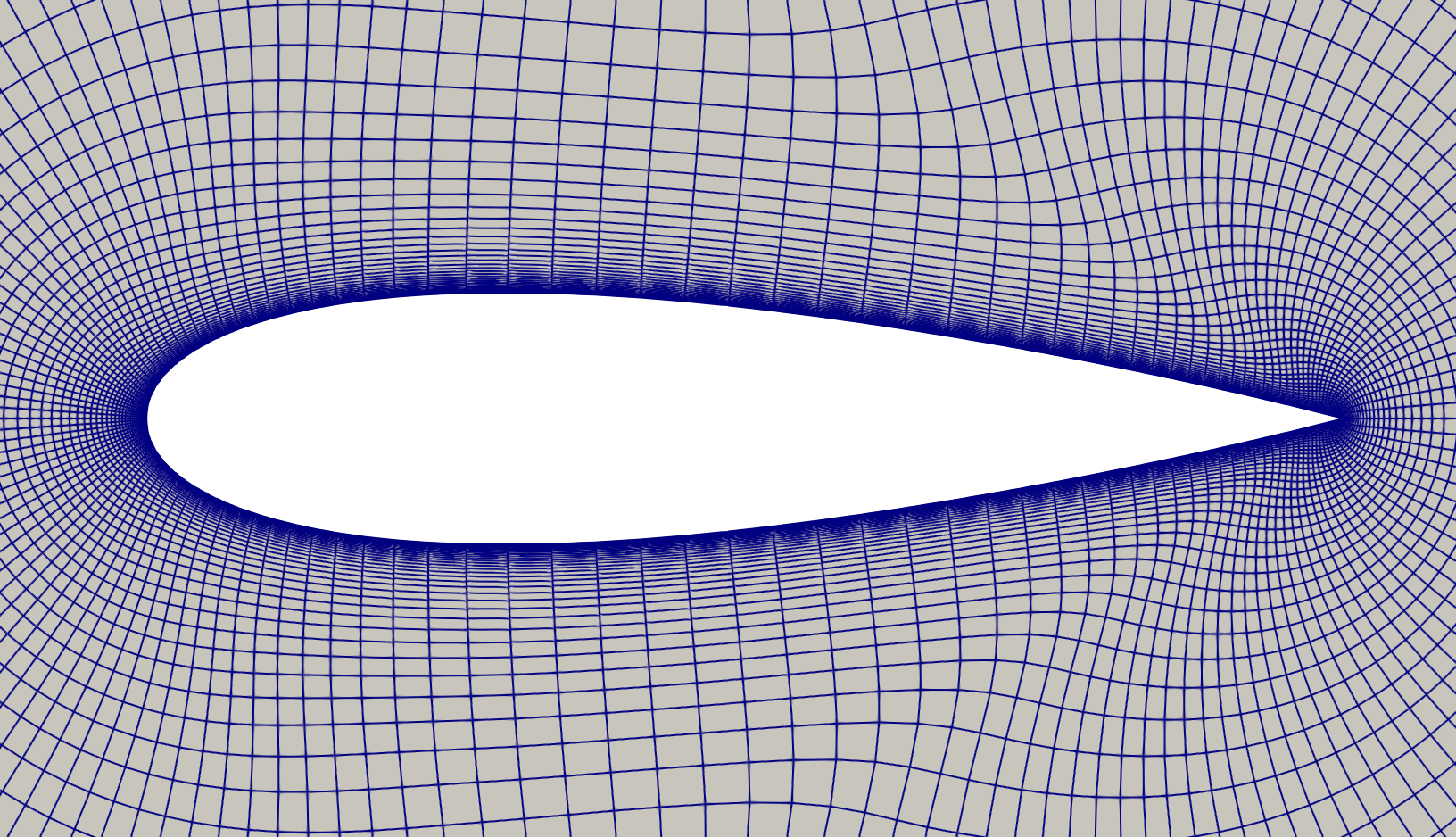

Figure 2 - Mesh near the airfoil, in a plane normal to the span.

The reference computations of Guseva et al. use a finer O-grid with a span of 4 chords. The span matters: with a span of 1 chord, DES gives higher mean forces, larger fluctuations and stronger suction than with 4 chords (Garbaruk et al. 2009). For this reason, this page compares the results with the published DES at a span of 1 chord, and with the experiment.

Results

All results are averages in time and along the span. The error bars and bands are standard errors of the mean, computed from blocks of 50 c/U. Garbaruk et al. (2009) estimate that a span of 1 chord needs about 2400 c/U for a 1% error in the mean forces, so a few percent of statistical error remains here.

Mean forces

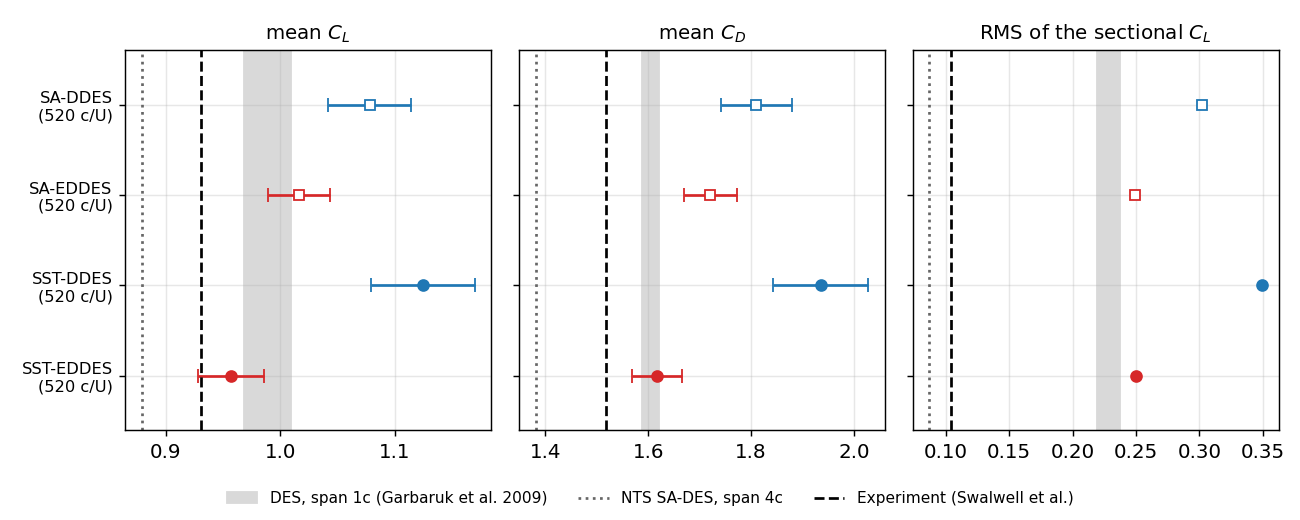

Figure 3 - Mean lift and drag coefficients (± 1 standard error) and root mean square (RMS) of the sectional lift coefficient. Grey band: range of four published DES with a span of 1 chord (Garbaruk et al. 2009). Dotted line: NTS DES with a span of 4 chords. Dashed line: experiment of Swalwell et al.

• The two EDDES runs agree with the published DES at the same span, within about 7% in drag.
• The two DDES runs give 7 to 22% more lift and drag than the published DES, and larger fluctuations. With SST, the difference between DDES and EDDES is about 3 standard errors, so it is unlikely to be a statistical effect.
• All runs give more lift and drag than the experiment. This is expected with a span of 1 chord: the published DES at the same span show the same trend.

Mean pressure coefficient

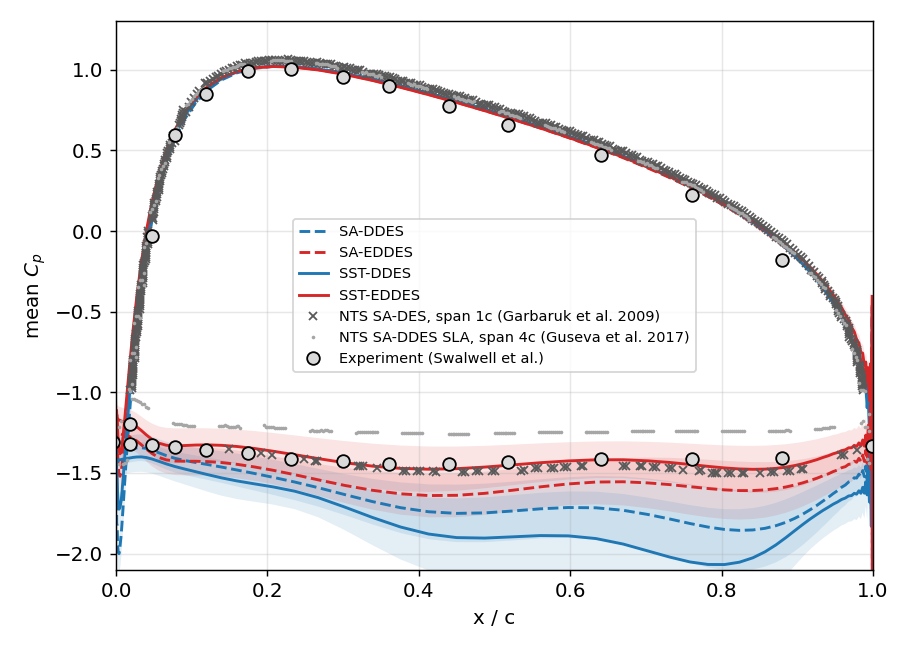

Figure 4 - Mean pressure coefficient. The bands show ± 2 standard errors. Crosses: NTS SA-DES with a span of 1 chord (Garbaruk et al. 2009). Grey dots: NTS SA-DDES with the shear-layer-adapted cell size and a span of 4 chords (Guseva et al. 2017).

• On the pressure side, all models agree with the experiment and with each other.
• On the suction side, SST-EDDES follows the experiment and the published DES at 1 chord. SA-EDDES has a little more suction.
• Both DDES runs have clearly more suction than the experiment. This matches their higher drag.
• The DES at 4 chords has less suction than the experiment. This shows again how much the span changes the result.

Lift spectrum

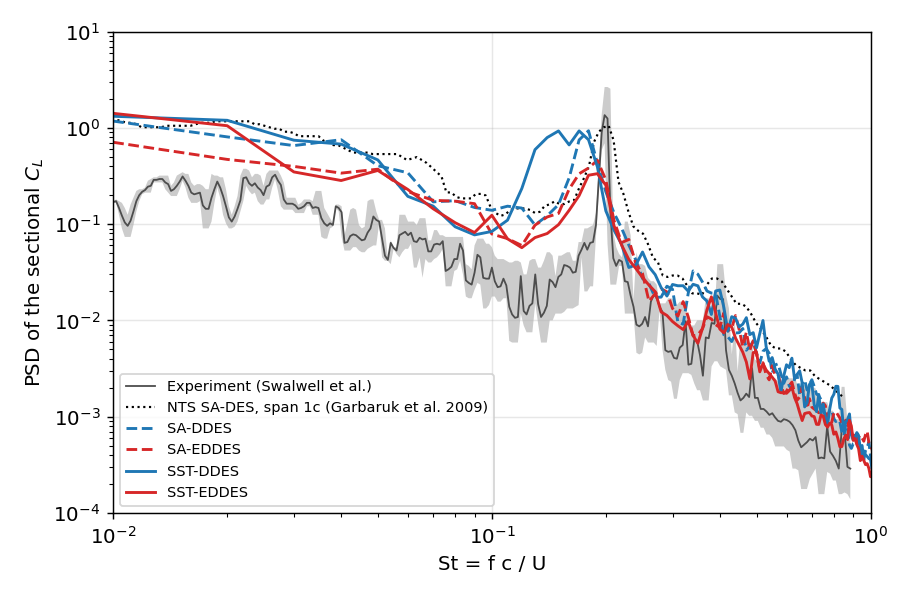

Figure 5 - Power spectral density (PSD) of the sectional lift coefficient, averaged along the span, against the Strouhal number St = f c / U. Welch method with segments of 100 c/U. Experiment and NTS DES digitized from Guseva et al. (2017) and Garbaruk et al. (2009). The scaling of the published curves is not stated, so compare the shapes and the peak positions.

• All runs show the vortex-shedding peak. The EDDES runs put it at St = 0.19, close to the experiment (0.198).
• SST-DDES puts the peak at St = 0.17, with more energy at low frequency. This suggests stronger and more regular shedding, closer to a two-dimensional flow.
• Above St = 0.25, all runs follow the slope of the experiment.

Summary

• All four hybrid models run on this massively separated flow and give the shedding frequency of the experiment within 15%.
• With either background model, the shear-layer-adapted cell size (EDDES) moves the results toward the experiment and toward the published DES at the same span. With the longest-edge cell size (DDES), the shear layers stay smooth for longer, and the forces are too high.
• The SA and SST versions of the same variant give similar results.

Limits of this study

• One mesh, with a span of 1 chord. The published reference uses 4 chords. A run with a span of 4 chords has been started.
• The JST scheme without a low-dissipation option damps the small eddies more than the schemes of the reference computations.
• The statistics cover 520 c/U for each run. The mean forces still have a statistical error of 3 to 5%. The SST runs were continued further (to about 1000 c/U): over the longer time, their mean forces change by less than 0.02, within this error.
• The published DES at a span of 1 chord average over 1000 to 2100 c/U (Garbaruk et al. 2009, Table 2), 2 to 4 times longer than here. With their error estimate (their Eq. 1), our 520 c/U give an error of about 2 to 3% in the mean forces, close to our own estimate.

References

• Swalwell, K. E., Sheridan, J., Melbourne, W. H., “Frequency analysis of surface pressures on an airfoil after stall”, 21st AIAA Applied Aerodynamics Conference, AIAA Paper 2003-3416, 2003.
• Garbaruk, A., Leicher, S., Mockett, C., Spalart, P., Strelets, M., Thiele, F., “Evaluation of time sample and span size effects in DES of nominally 2D airfoils beyond stall”, in Progress in Hybrid RANS-LES Modelling, NNFM 111, Springer, 2010. Author copy
• Guseva, E. K., Garbaruk, A. V., Strelets, M. Kh., “Assessment of Delayed DES and Improved Delayed DES combined with a shear-layer-adapted subgrid length-scale in separated flows”, Flow Turbul. Combust. 98, 481–502, 2017.
• Shur, M. L., Spalart, P. R., Strelets, M. Kh., Travin, A. K., “An enhanced version of DES with rapid transition from RANS to LES in separated flows”, Flow Turbul. Combust. 95, 709–737, 2015. doi:10.1007/s10494-015-9618-0
• Gritskevich, M. S., Garbaruk, A. V., Schütze, J., Menter, F. R., “Development of DDES and IDDES formulations for the k-ω shear stress transport model”, Flow Turbul. Combust. 88, 431–449, 2012. doi:10.1007/s10494-011-9378-4
